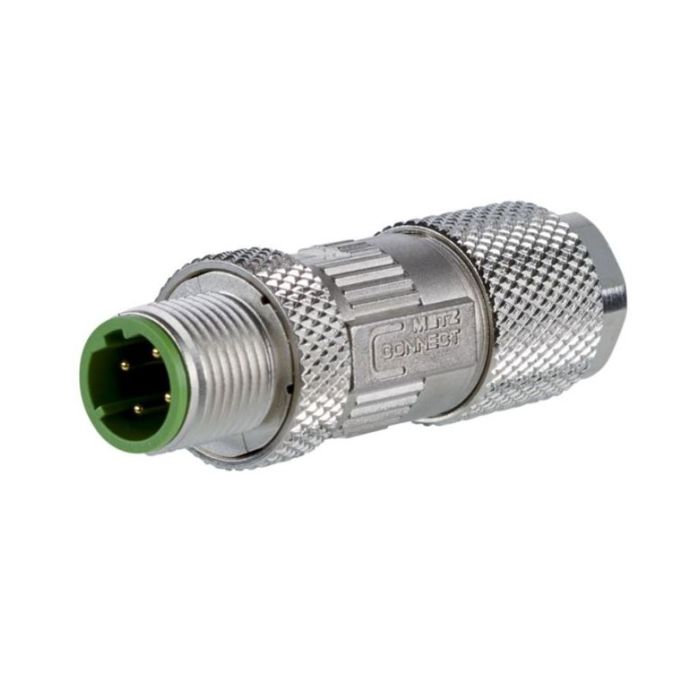

Field Plug, Male recht, M12, D-coded IP67, 4-polig, AWG22, Cat5e
Productomschrijving
M12 field plug D-coded, straight
M12 Cat.5 D-coded plug based on IEC PAS 61076-2-101 and suitable for field packaging
M12 field plug for AWG 22
for a 4 wire cable connection
4-wire M12 plug for AWG 22 to be assembled in the field
connection of AWG 26/7 - 22/7; AWG 24/1 - 22/1 possible
solid copper wire diameter from 0.4 to 0.64 mm
stranded copper wire diameter from 0.48 to 0.76 mm
conductor diameter up to 1.6 mm
cable jacket from 5.0 to 9.7 mm
consists of only 2 parts
easy assembly - connection without special tools
zinc die-cast housing for industrial use
Redlink: Officieel Distributeur Metz Connect
Redlink: Officieel Distributeur Metz Connect
- Uitvoering behuizing
- Recht
- Brandbaarheidsklasse isolatiemateriaal conform UL 94
- V0
- Afgeschermd
- Ja
- Contactuitvoering
- Overig
- Diameter connector
- 16.8
- Draadgrootte M
- 12
- Aantal data contacten
- 8
- Aantal vermogenscontacten
- 8
- Voor buitendiameter kabel
- 5 - 9.7
- Nom. (meet)stroom In
- 1
- Omgevingstemperatuur
- -125 - -125
- Nom. (meet)spanning
- 60
- Overspanningscategorie
- III
- Vervuilingsgraad
- 2
- Aansluitbare geleiderdoorsnede eendraads
- 205 - 324
- Aansluitbare geleiderdoorsnede meerdraads
- 141 - 355
- Uitvoering elektrische aansluiting
- Insnijaansluiting
- Materiaal contactcoating
- Messing
- Materiaal behuizing
- Zink
- Type vergrendeling
- Schroefwartel
- Min. aantal steekcycli
- 100
- Met status-indicatie
- Nee
- Brand
- Metz
